Inta Mio Safe Touch Thermostatic Bsm With Deck Mounting Legs – Mi30020cp

Inta Mio Safe Touch Thermostatic Bsm With Deck Mounting Legs – Mi30020cp

• Colour: Chrome

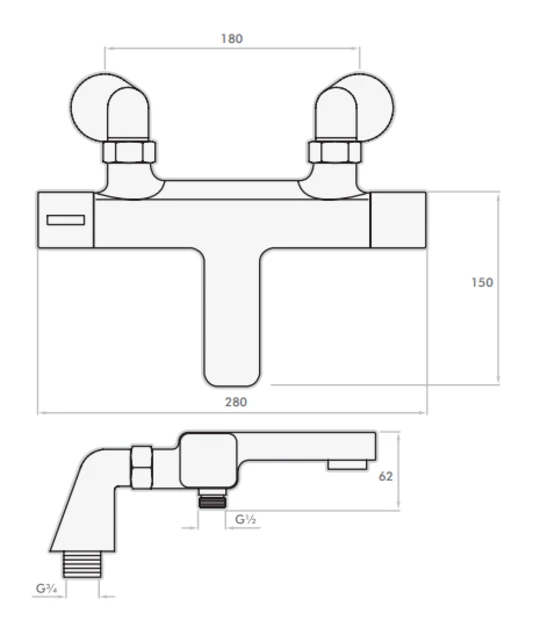

• Depth: 150mm
• Fitment Style: Exposed
• Guarantee: 5 Years
• Inlet Connection: G ¾” F BSP
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 280mm

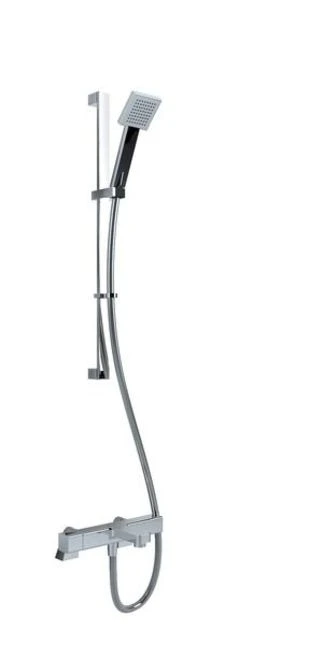

Beautiful lines and contrasting chrome and black define the Mio range. Make a bold statement in the shower with this elegant bar shower mixer with its stylish range of accessories. Create the bathroom look you really want with the peace of mind that goes with thermostatic protection.

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems

Thermal cartridge technology

Temperature stability of +/-2°C

Fail safe on hot and cold supplies

Safe touch body

Operating pressure range of 0.2 to 5 bar

Integrated flow diverter

Available with deck mounting legs

Technical Specifications

Technical Specifications
Factory pre set temperature: 38°C with max temp stop
Inlet connections: G ¾” F BSP (valve body)
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min inlet pressure dynamic: 0.2 bar
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: G ½” BSP
System installation: Unvented, pressurised, gravity and combi boilers
