Inta Mood Contemporary Exposed Dual Control Thermostatic Shower Valve – 90014Cp

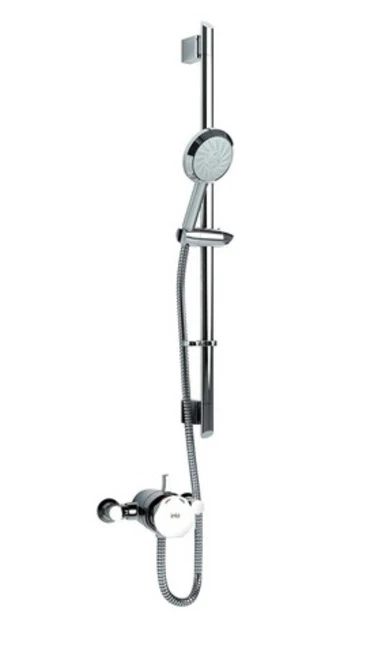

Valve Only – Does not include rail kit as pictured

• Colour: Chrome
• Fitment Style: Exposed
• Guarantee: 5 Years
• Inlet Connection: 15mm Compression
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back

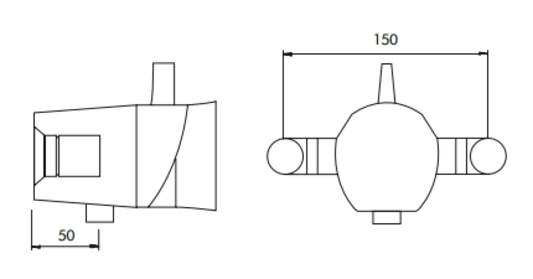

• Width: 170mm

The Inta range of showers has been designed to give you the best of both worlds. The Inta collection offers the ultimate balance between excellent performance and the latest designs to suit every bathroom.

• Dual control shower valve for independent control of temperature and flow
• Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems
• Single piece thermal cartridge technology
• Factory set at 43°C to prevent scalding
• Temperature stability of ± 2°C
• Fail safe on hot and cold supplies
• Operating pressure range of 0.2 to 5 bar
• WRAs approved
• TMV2 approved

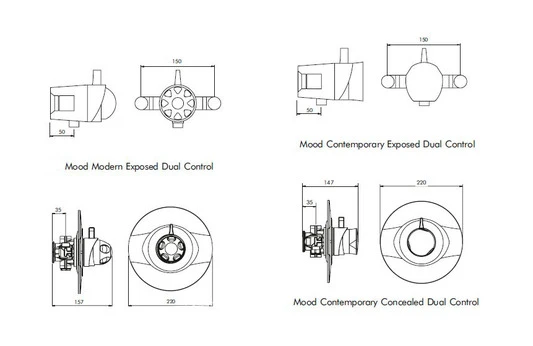

• Exposed and concealed models available
• Full range of kits to suit

Technical Specifications
Factory pre set temperature: 38°C with max temp stop
Inlet connections: 15mm compression elbows
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min inlet pressure dynamic: 0.2 bar
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: G ½” BSP
System installation: Unvented, pressurised, gravity and combi boilers
