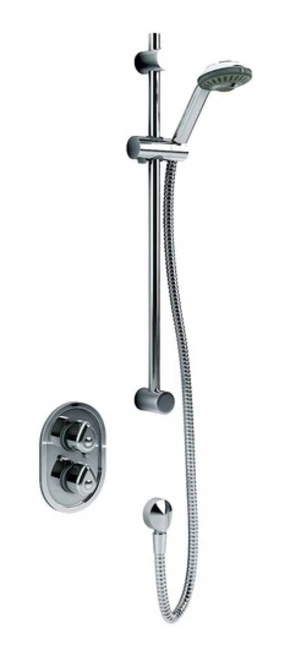

Inta Plus Thermostatic Concealed Shower

Valve Only – Does not include rail kit as pictured

• Colour: Chrome
• Depth: 124mm
• Fitment Style: Concealed
• Guarantee: 5 Years
• Height: 230mm
• Inlet Connection: 22mm Compression
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 160mm

The Plus combines a clean, simple style with Inta’s thermostatic protection. Practical and elegant, the Plus range can be used to enhance the appeal of the bathroom setting whilst protecting those who use the bath or shower.

• Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems
• Thermal cartridge technology
• Temperature stability of ± 2°C
• Fail safe protection on both the hot and cold supplies
• Operating pressure range of 0.2 to 5 bar
• WRAS and TMV2 approved

Factory pre set temperature: 38°C with max temp stop

Inlet connections: 22mm compression elbows

Min inlet pressure dynamic: 0.2 bar

Max inlet pressure static: 5 bar

Max inlet temperature: 85°C

Min temp to achieve hot or cold failsafe: 15°C

Outlet connections: 22mm compression

System installation: Unvented, pressurised, gravity and combi boilers
