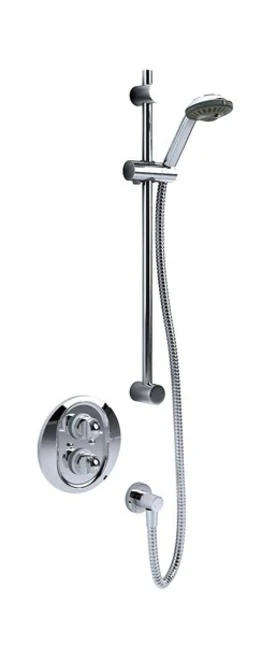

Inta Telo Thermostatic Concealed Shower – Tl40010cp

Valve Only – Does not include rail kit as pictured

• Colour: Chrome
• Depth: 54mm
• Fitment Style: Concealed
• Guarantee: 5 Years
• Height: 180mm
• Inlet Connection: 15mm Compression
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 180mm

The popular style of the Telo range ensures that it is at home in whatever setting it is installed. A flagship product of the Inta range, the Telo has proven itself time and time again to be a popular choice.

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems

Thermal cartridge technology

Temperature stability of +/-2°C

Fail safe on hot and cold supplies

Operating pressure range of 0.2 to 5 bar

Integrated flow diverter

Single or dual outlet options

Technical Specifications

Factory pre set temperature: 38°C with max temp stop
Inlet connections: 15mm compression elbows
Min inlet pressure dynamic: 0.2 bar
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: 15mm compression
System installation: Unvented, pressurised, gravity and combi boilers
