Important Information

The shower must only be connected to a 230-240V ac supply.

The installation must be in accordance with Water Regulations and Bylaws.

To guarantee activating the heating elements,
the shower must be connected to a mains water
supply with a minimum running pressure of
100kPa (1.0 bar) at a minimum flow rate of
eight litres per minute for the 7.5kW and 8.5kW
rated model. Nine litres per minute for the
9.5kW rated model.

For the 10.5kW rated shower, the minimum
running pressure must be 150kPa (1.5 bar) at a
minimum flow rate of eleven litres per minute.
For all models the maximum static pressure must
not exceed 1000kPa (10 bar).

Product Specification

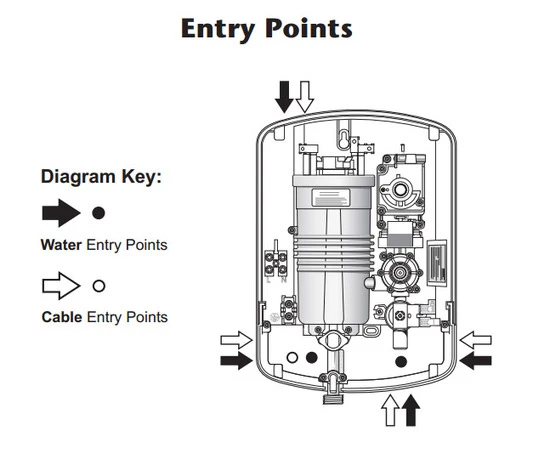

Cable Entry: Back Left
Depth: 110mm
Height: 305mm
Inlet Connection: 15mm Compression
Plumbing System: Mains Cold Water Only
Temperature Control: Manual
Water Entry: Back Right
Width: 210mm

White/Chrome finish
3 power settings
Low pressure indicator
Power on indicator
Temperature control
Separate push on/off control
4 showerhead patterns
SPECIFICATIONS
Electrical
Nominal power Nominal power
rating at 240V rating at 230v
7.5kW – (32A MCB rating) 6.9kW – (32A MCB rating)
8.5kW – (40A MCB rating) 7.8kW – (40A MCB rating)
9.5kW – (40A MCB rating) 8.7kW – (40A MCB rating)
10.5kW – (45A MCB rating) 9.6kW – (45A MCB rating)

Dimensions
Height – 305 mm
Width – 210 mm
Depth – 110 mm

Water
Inlet connection – 15 mm diameter.
Outlet connection – ½” BSP male thread.
