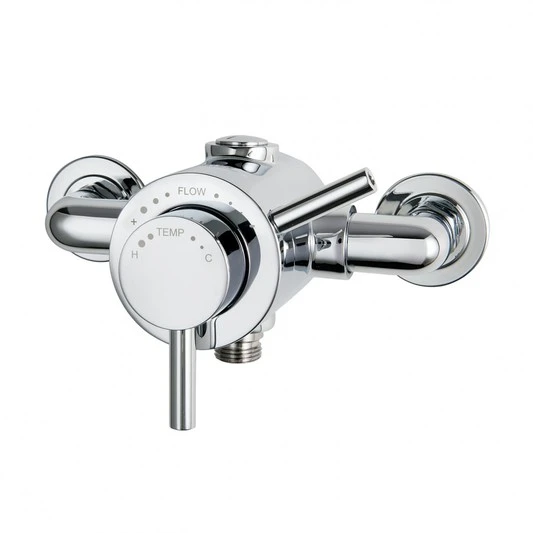

Name: Limited Edition: High-Quality Triton Elina Inclusive Concentric Exposed Mixer Valve Only - Elicmincexvo in Short Supply This Year.
SKU: ELICMINCEXVO
Price: 95.99 GBP
Availability: InStock

Product Description

Ideal for use in care homes, hospitals and nursing homes, this TMV3 approved thermostatic exposed concentric mixer shower includes easy to grip and control, low resistance separate lever controls for flow and temperature, which are front facing for easy access. Greater accuracy and control is possible with the clear flow and temperature markings, whilst the Elina’s hygienic design avoids the formation of dirt traps. Kit and shower head sold separately.

Thermostatic temperature control and TMV3 approval for added peace of mind
Automatic shutdown safety feature should either the hot or cold water supplies fail
Suitable for all pressure systems
Separate tamper proof flow and temperature controls for ease of use
WRAS approved for water supply regulations compliance
Easy to install and maintain

Product Specification

Colour: Chrome
Guarantee: 5 Years
Inlet Connection: 15mm Compression
Minimum Running Pressure: 0.2 Bar
Outlet Connection: ½” BSP
Temperature Control: Thermostatic

Temperature Control and Flow Performance
Temperature Control	Thermostatic
Open Outlet Flow Rate	7 l/min at 0.1 Bar
Maximum Flow Rate with Flow Limiters Fitted	12 l/min
Safety
Installation Set Maximum Temperature Limit	Yes
Adjustable Maximum Temperature Stop	No
Automatic Shutdown	Yes
Controls
Separate Flow and Temperature Controls	Yes
Combined Flow and Temperature Control	No
Temperature Control	Yes
Flow Diverter Control	No
Combined Flow and Diverter Control	No
Finish
Finish	Chrome
Guarantee and Approvals
Guarantee	5 Years
Approvals	Complies with: BS EN 1111, 1287 : WRAS, TMV3
Installation
Plumbing System	Suitable for all Systems
Water Entry Points	Rising, falling, back
Inlet Connections	15mm compression to flat face union
Pipe Inlet Centres	150mm
Outlet Connection	1/2″ BSP Bottom
Minimum Running Pressure / Flow	0.2 Bar at 8 l/min
Maximum Running Pressure	5 Bar
Maximum Static Pressure	10 Bar
