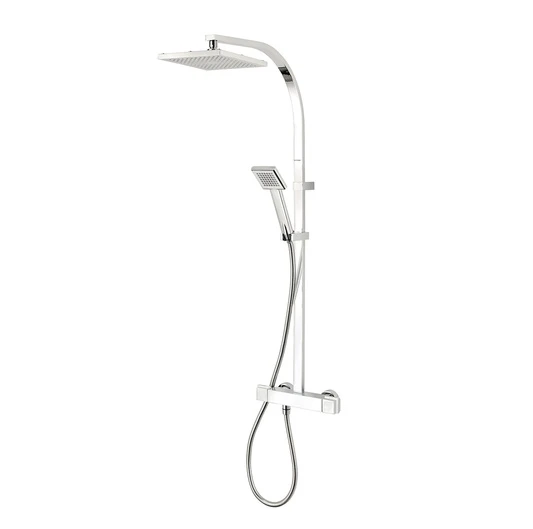

Triton Tees Bar Mixer Shower With Diverter – Untebmdiv

Triton Tees Bar Mixer Shower With Diverter – Untebmdiv

• Colour: Chrome
• Guarantee: 5 Years
• Minimum Running Pressure: 0.5 Bar
• Plumbing System: High Pressure
• Temperature Control: Thermostatic

Operating Features

• Thermostatic temperature control
• Automatic shutdown if hot or cold supplies fail
• Adjustable maximum temperature stop
• Separate diverter and temperature controls
• Switch between large fixed head and a small handset
• Anti-kink chrome hose
• Rub clean showerhead and handset– Single spray pattern



Temperature Control: Thermostatic
Plumbing System compatibility: Low and high pressure (All systems)
Inlet Connections: 1/2” BSP to 3/4” flat face union
Water Entry Points: Back
Outlet Connection: 1/2” BSP bottom
Minimum Running Pressure/Flow: 0.1 Bar @ 8l/min
Maximum Running Pressure: 5 Bar
Maximum Static Pressure: 10 Bar
Open Outlet Flow Rate at 0.1 Bar: 3l/min
Pipe Inlet Centres: 150mm
Approvals: Complies with BS EN 1111, TMV2, WRAS
Guarantee: 5 years
